Description

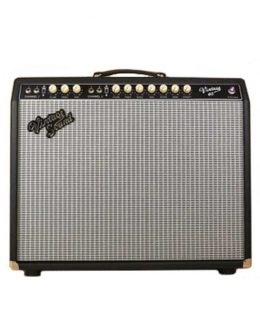

Model: Vintage 15
Amplifier Type: Tube
Specifications:
Circuitry: Black Face AA1164
Power Handling: 15 Watts into 8 Ohms
Inputs: One channel; 2 Inputs
Auxiliary Inputs:
Bias Points
RCA Footswitch Jack
Extension Speaker Jack
External Speaker Jack
Controls: Volume, Treble, Middle, Bass. Reverb, Speed, Intensity
Hardware:
Cabinet Material: Solid Pine Cabinet w/ Birch Plywood Baffle & upper and lower back panel
Pilot Light Jewel: Blue (other colors available)
Knobs: See options
Handle: Leather Handle
Effects:
Tube Driven Spring Reverb
Tube Vibrato
Speakers:
See options
Tubes:
Rectifier: 5AR4 Rectifier Tube
Power Tubes: (2) 6V6
Preamp Tubes: (3) 12AX7, (1) 12AT7
Optional Accessories:
2-Button Footswitch
Custom Padded Cover
Standard Modification(s)
Dwell control added to back of chassis
Optional Modification(s)
Combo Dimensions:
Amplifier Depth: 9 1/2″
Amplifier Width: 19 7/8″
Amplifier Height: 17″
Amplifier Weight: 35 lbs.
