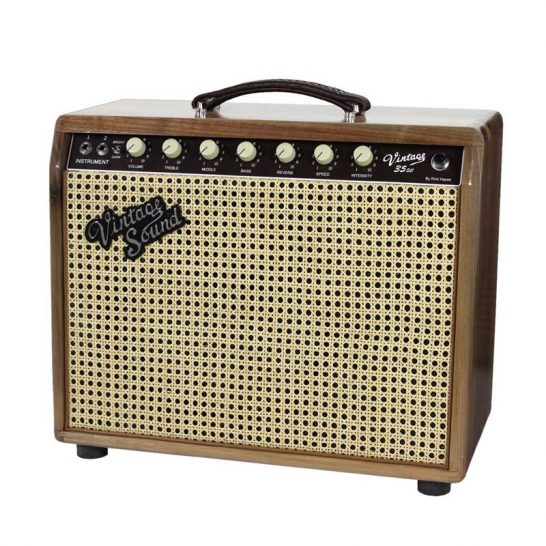

VINTAGE 35sc (Vibrolux Reverb Style)

Description

Model: Vintage 35sc
Amplifier Type: Tube

Specifications:
Circuitry: Black Face AB763
Power Handling: 35 Watts into 8 Ohms
Inputs: One channel; 2 Inputs
Auxiliary Inputs:
Bias Points
RCA Footswitch Jack
Extension Speaker Jack
External Speaker Jack
Controls: Volume, Treble, Middle, Bass. Reverb, Speed, Intensity w/ Dwell control on back of chassis as 2nd EQ for Reverb

Hardware:
Cabinet Material: Solid Pine Cabinet w/ Birch Plywood Baffle & upper and lower back panel
Pilot Light Jewel: Blue (other colors available)
Knobs: See options
Handle: Leather Handle

Effects:
Tube Driven Spring Reverb
Vibrato w/Diaz Tremolo mod

Speakers:
See options

Tubes:
Rectifier: 5AR4 Rectifier Tube
Power Tubes: (2) 6L6
Preamp Tubes: (3) 12AX7, (2) 12AT7

Optional Accessories:
2-Button Footswitch
Custom Padded Cover

Dimensions:
Amplifier Depth: 9 1/2″
Amplifier Width: 19 7/8″
Amplifier Height: 17″
Amplifier Weight: 38 lbs.

The Vintage Sound Vintage 35sc is the amp that Leo *should* have built! For years guitar players both professional and amateur have praised the coveted Black Face AB763 circuitry found in the mid 60’s Deluxe Reverbs as the Holy Grail of tone. However, we often hear the following from many of them: 1) Why 2 channels? I only use the Main channel, and 2) Someone should offer a smaller single channel “grab and go” version!
